Description
This is the only Öhlins Road & Track fitment camber plate on the market specifically engineered for the VB WRX. Every dimension, slot, and mounting point was developed from scratch – not carried over from VA or GR chassis plates like most of our competitors continue to sell. While previous-gen plates technically bolt up, they force the camber adjustment range into the wrong part of the strut tower, creating serious alignment compromises and degraded handling.
We didn’t settle for compatibility. We optimized geometry, strength, adjustability, and feedback – and engineered a truly no-compromise solution for Öhlins Road & Tracks.
Key Advantages:
Correct geometry for VB WRX
Delivers usable camber range that centers where it should – unlike competitor plates that leave you chasing grip and steering balance with misaligned slots.

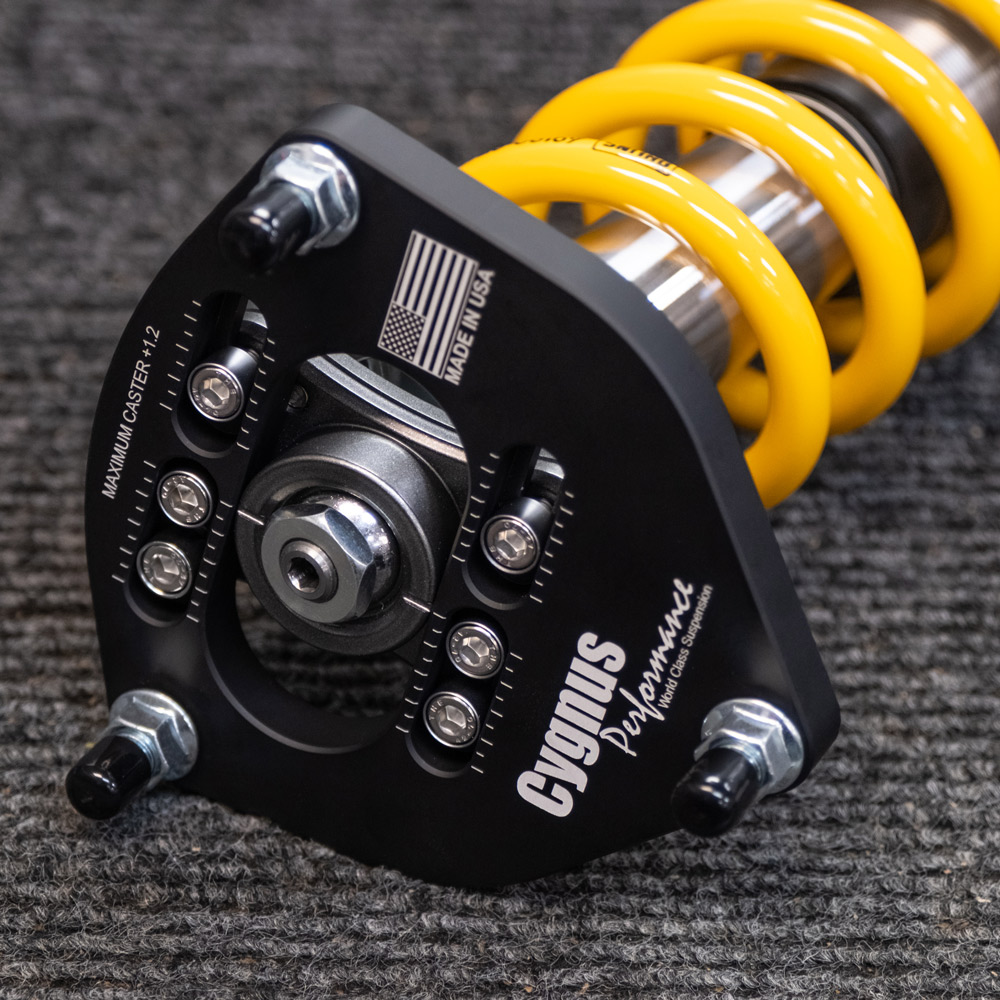

+1.2° fixed positive caster
The most positive caster in the industry. Improves dynamic camber gain, steering feel, straight-line tracking, and tire wear – especially critical when running lower ride heights that disrupt factory geometry.
Maximum structural strength
Ultra-thick top plate with dual camber adjustment channels and fully recessed hardware. Zero flex under load. No deformation, no cracking, no failures.
High-clamping force anti-slip design
12-bolt M6 hardware interface with sleeved adjusters eliminates plate slip even under repeated high-load impacts.
Direct bolt-up to Öhlins Road & Track
Includes VB-specific Öhlins shoulder spacers, custom 65 mm perches, and all required hardware for seamless integration.
Kit Contents:
- Pair of high-caster camber plates with pressed-in studs and flange nuts

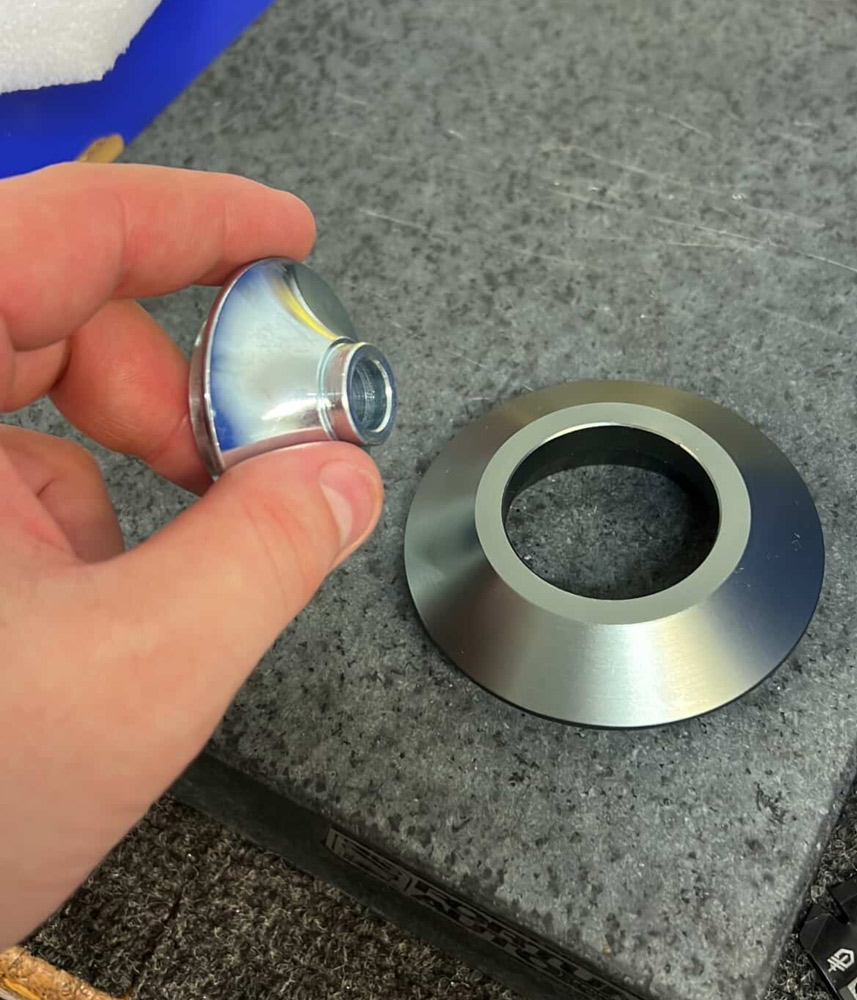

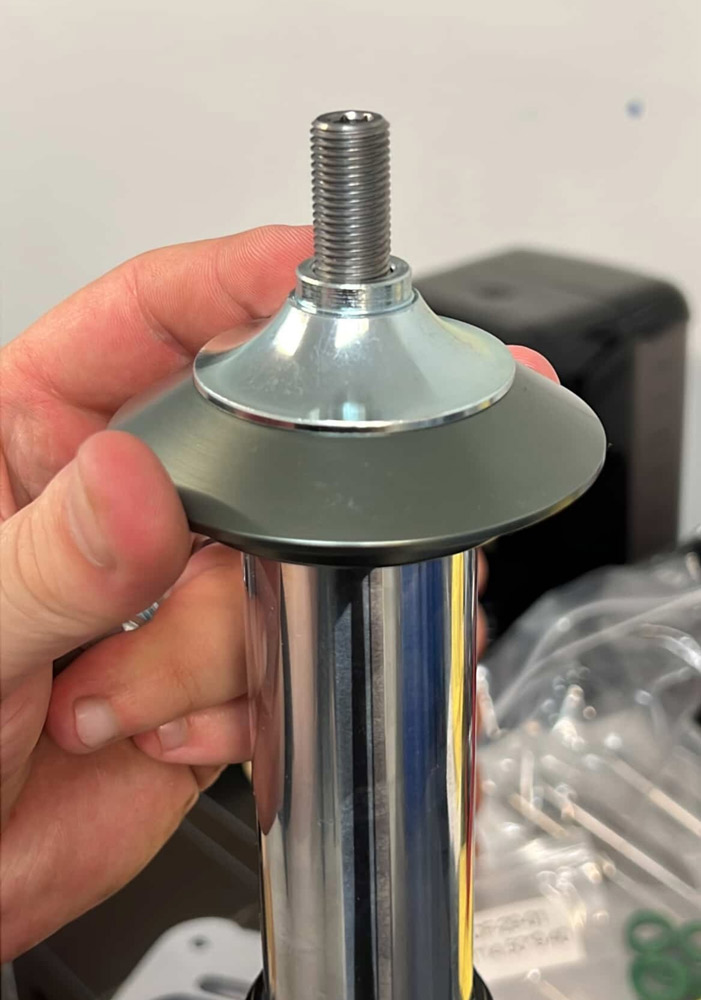

- 65 mm gunmetal anodized upper perches
- Composite-lipped spring isolators
- Heavy-duty triple-bolt spherical bearing housings
- 12x M6 camber bolts with sleeves
- 21 mm Öhlins-compatible top-hat nuts
- Shoulder spacers for Öhlins R&T VB WRX fitment
Built to Solve Real Problems
Öhlins Road & Track is a premium coilover kit – but it doesn’t include camber plates. Most aftermarket options compromise your geometry or your structural integrity. Cygnus Performance solves both. Our plates are the only option that deliver the correct camber window, the most aggressive caster, and industry-leading strength – all in one complete bolt-on kit.
