Geoff’s Choice Cygnus Performance X-1 Classic Edition Coilover Set 2005-2007 STi

$2,500.00

-

***Full set of four coilover assemblies for entire car are included in this kit. Coilovers are fully assembled and include front and rear top hats.***

After more than 16 years of selling custom Subaru coilovers we have a lot of data on what works well for our customers. Geoff’s Choice Classic Edition coilovers feature the same exceptional build quality and valving designs as our custom built to order coilovers with preselected options that our founder recommends for a well-rounded set of coilovers that does everything well. This coilover set provides exceptional handling and ride quality. You get all of the advantages of our custom X-1 product line with a simplified ordering process and no lead time!

Quick Specs:

  • X-1 Classic Edition European style digressive valving for smooth ride quality and excellent handling
  • Upgraded Cygnus Performance Spec Swift Springs with 8k front and 7k rear rates
  • Upgraded Cygnus Performance High Caster Camber Plates for greatly improved straight line stability, steering feel, front end grip and tire wear characteristics. Standard no offset camber plates included free of charge loose in box.
  • Ride height range: 3/4″ to 3″ below stock
  • Black top hats and lower mounts, bright dip blue anodized spring perches and lower mount locking collars, silver front springs with blue rear springs
  • Group 5 Ester Based High Viscosity Index Synthetic Oil for exceptionally long life and consistent operation
  • The Motorsport Shock Upgrade* which consists of heavy duty triple bolt spherical housings with 50% more clamping force to almost eliminate any chance of camber slipping as well as clamping style ride height adjustment locking. *This upgrade has no effect on ride quality

Scroll down for a thorough description.

Included upgrades and optional extras:

+
+
+
+
  • Add-on Price: $0.00
  • Product Price: $2,500.00
  • Total: $0.00
Category:

Description

As with all X-1 coilovers Geoff’s Choice coilover sets feature some of the most advanced, most thoroughly R&D’d valving profiles money can buy. Our European style digressive valving provides damping force in all the right places. Stiff low speed gives you incredible handling and driver feedback with minimal body roll. High speed tapers off as shaft velocity increases which provides exceptionally smooth ride quality and keeps handling composed on a bad road. Particularly in this price range most coilover sets have to compromise between smooth ride quality and excellent handling. With the X-1 you truly get the best of both worlds. Aside from having one of the best digressive valving profiles at any price point these coilovers feature a wide rebound adjustment range. This allows you to dramatically change the characteristics of the coilovers simply by clicking the damping adjustment knobs (contrary to popular belief the number of clicks is not important. It’s what these clicks do that is important, and the range you find on the X-1 is larger than anything else in this price range). This range also makes the coilovers extremely modular because it allows you to modify spring rates in the future if your goals with handling or ride quality ever change.

The components we use are the best that money can buy. Pistons are both developed and CND’d in the United States. Shims are imported from Sweden and are made from some of the best quality steel in the world. Oil is either sourced from the United States or France depending on the application and valving profile. We use a high viscosity index group 5 synthetic ester based oil for long shock life and the ultimate consistency. Whether you are pulling out of your driveway on a cold January morning in Alaska or turning fast laps in mid July in Arizona our coilovers are exceptionally consistent. Bearings, shafts and seals are sourced from Japan. Every component has been selected specifically for long life and consistency.

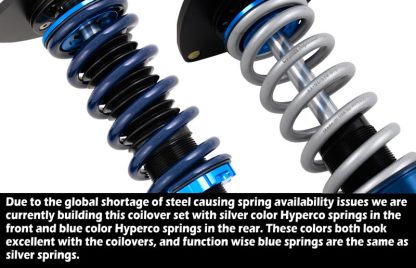

This Geoff’s Choice coilover set comes standard with Swift springs. We developed these springs by working closely with Swift. We are very proud of them. They are the highest quality, smoothest riding spring in the world. They are considerably better quality than the springs other coilovers in the X-1’s price range are typically equipped with. These Cygnus Spec Swift Springs are made in Japan. They are extremely accurate and have almost no rate distortion. A spring that does not distort much (increasing rate upon compression) rides noticeably smoother. A very accurate spring provides noticeably more consistent handling. The car feels the same at the beginning of the corner as it does at the middle and end of the corner. It feels the same turning left and turning right. A spring may seem like a simple part, but high quality accurate springs are mission critical when it comes to getting the most out of your suspension. Every Cygnus Performance Swift spring is fully cycled and blocked at the factory to avoid any potential sag or settling. These springs are the lightest weight springs we have ever offered saving almost 1 lb per spring when compared to our previous version.

8k front and 7k rear spring rates. After selling tens of thousands of coilover sets for these platforms we have found these rates to be a great balance between significantly reducing body roll and providing smooth daily ride quality. You can drive on these rates every day, you can have fun at the track or autocross, and you can lower your car from 3/4″ to 3″ below stock. This ride height range will give you a tasteful drop for better looks while providing reduced drag and a lower center of gravity for better performance.

All Geoff’s Choice coilover sets come standard with Cygnus Performance High Caster Camber Plates. These are the best camber plates on the market for your Subaru. They feature a best in the industry 1.2° of positive caster which has many benefits including better dynamic camber characteristics, more front end grip, less understeer, better tire wear characteristics, better on center steering feel, better overall steering feel, better straight line stability and better high-speed stability. Improving straight line stability is particularly beneficial when you lower ride height since this throws off factory steering geometry.

Cygnus Performance High Caster Camber Plates are also an extremely well made plate. They are very thick with fully recessed hardware and dual camber adjustment channels for more rigidity and strength than anything else on the market. Zero flex even with hard hits means a better connection to the pillow ball housing. No issues with hairline cracks or catastrophic failures like you may have seen with other brands. Zero flex also means incredible driver feedback and handling. They are 100% made in the United States using US sourced raw materials.

Our business model is very different from most of the competition. We don’t spend a single dime on advertising. We put everything we have into making the product as good as it can possibly be, and we sell coilovers directly to the consumer without any unnecessary middle men or distribution channels. We rely on happy customers spreading the word for most of our sales. That only works because we offer truly quality suspension that gets customers the best possible results for their money. We are here for a lifetime of support both before and after the sale, and we will do everything we can to ensure that your coilovers exceed your expectations. If you have any questions about this product or any of our products please click here to contact us and we will be glad to help.
